    Blind Stop

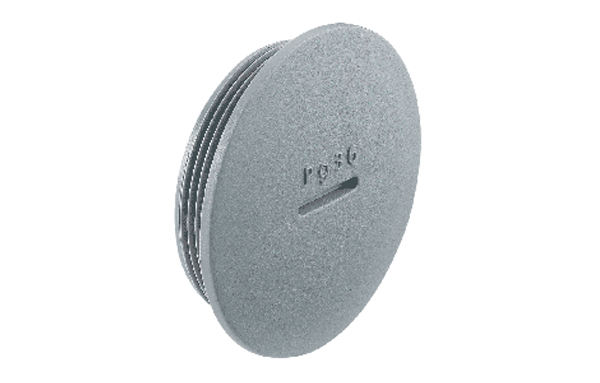

    Standard Polyamide Blind Stops - Metric & Pg Thread in Polyamide (Circular)

    Blind Stops made of Polyamide 6 are used wherever threads previously cut must be closed for preventing dust, dirt and foreign matters from entering the enclosure or equipment. O rings of Neoprene should be mounted on the threaded part to get the IP 68 protection.

    Download PDF CE ROHS

    Technical Details

    Pg Blind Stop - Grey
    Cat. No. Grey Size Thread Diameter D (mm) Thread Length L (mm) Spanner Size (mm) Clamping Range (mm) Standard Pack (Pieces)
    ABP-01 Pg 7 12.5 8 15 3 - 6.5 50
    ABP-02 Pg 9 15.2 8 19 04 - 08 50
    ABP-03 Pg 11 18.6 8 22 05 - 10 50
    ABP-04 Pg 13.5 20.4 10 24 06 - 12 50
    ABP-05 Pg 16 22.5 10 27 10 - 14 50
    ABP-06 Pg 21 28.3 11 33 13 - 18 25
    ABP-07 Pg 29 37 11 42 18 - 25 20
    ABP-08 Pg 36 47 13 53 22 - 32 10
    ABP-09 Pg 42 54 13 60 30 - 38 10
    ABP-10 Pg 48 59.3 14 65 34 - 44 10

    Pg Blind Stop - Black
    Cat. No. Black Size Thread Diameter D (mm) Thread Length L (mm) Spanner Size (mm) Clamping Range (mm) Standard Pack (Pieces)
    ABP-11 Pg 7 12.5 8 15 3 - 6.5 50
    ABP-12 Pg 9 15.2 8 19 04 - 08 50
    ABP-13 Pg 11 18.6 8 22 05 - 10 50
    ABP-14 Pg 13.5 20.4 10 24 06 - 12 50
    ABP-15 Pg 16 22.5 10 27 10 - 14 50
    ABP-16 Pg 21 28.3 11 33 13 - 18 25
    ABP-17 Pg 29 37 11 42 18 - 25 20
    ABP-18 Pg 36 47 13 53 22 - 32 10
    ABP-19 Pg 42 54 13 60 30 - 38 10
    ABP-20 Pg 48 59.3 14 65 34 - 44 10

    Metric Blind Stop - Grey
    Cat. No. Grey Size Thread Diameter D (mm) Thread Length L (mm) Spanner Size (mm) Clamping Range (mm) Standard Pack (Pieces)
    ABM-0S M 12 x 1.5 12 8 15 3 - 6.5 50
    ABM-01 M 16 x 1.5 16 10 22 05 - 10 50
    ABM-02 M 20 x 1.5 20 10 24 06 - 12 50
    ABM-03 M 20 x 1.5 20 10 27 10 - 14 50
    ABM-04 M 20 x 1.5 20 15 27 10 - 14 50
    ABM-05 M 25 x 1.5 25 10 33 13 - 18 25
    ABM-06 M 25 x 1.5 25 15 33 13 - 18 25
    ABM-07 M 32 x 1.5 32 15 42 18 - 25 20
    ABM-08 M 40 x 1.5 40 18 53 22 - 32 10
    ABM-09 M 50 x 1.5 50 18 60 30 - 38 10
    ABM-10 M 63 x 1.5 63 18 65 34 - 44 5

    Metric Blind Stop - Black
    Cat. No. Black Size Thread Diameter D (mm) Thread Length L (mm) Spanner Size (mm) Clamping Range (mm) Standard Pack (Pieces)
    ABM-1S M 12 x 1.5 12 8 15 3 - 6.5 50
    ABM-11 M 16 x 1.5 16 10 22 05 - 10 50
    ABM-12 M 20 x 1.5 20 10 24 06 - 12 50
    ABM-13 M 20 x 1.5 20 10 27 10 - 14 50
    ABM-14 M 20 x 1.5 20 15 27 10 - 14 50
    ABM-15 M 25 x 1.5 25 10 33 13 - 18 25
    ABM-16 M 25 x 1.5 25 15 33 13 - 18 25
    ABM-17 M 32 x 1.5 32 15 42 18 - 25 20
    ABM-18 M 40 x 1.5 40 18 53 22 - 32 10
    ABM-19 M 50 x 1.5 50 18 60 30 - 38 10
    ABM-20 M 63 x 1.5 63 18 65 34 - 44 5
