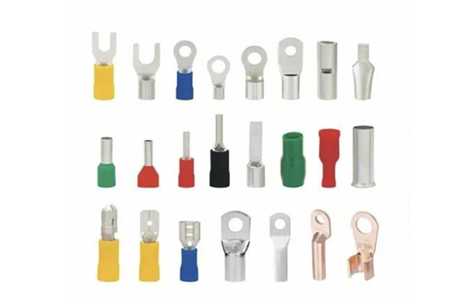

    Insulated & Non Insulated Copper Lugs

    Our range Copper Cable Terminal Ends – Insulated & Non Insulated is manufactured from high conductivity copper and electro-tinned for corrosion resistance. These are available in different sizes to serve different joining techniques such as crimping, soldering and welding.

    Insulated & Non Insulated Copper Lugs Download PDF CE ROHS

    Technical Details

    RING TERMINALS NON-INSULATED
    Sqmm Part Code Std Pack
    0.75 - 4ARS-7317-
    1 - 3.5ARS-7318-
    1.5 - 3ARS-7001-
    1.5 - 3.5ARS-7002-
    1.5 - 3.5ARS-7048-
    1.5 - 4ARS-7003-
    1.5 - 4ARS-7049-
    1.5 - 4ARS-7004-
    1.5 - 4ARS-7154-
    1.5 - 5ARS-7005-
    1.5 - 5ARS-7006-
    1.5 - 6ARS-7007-
    1.5 - 6ARS-7106-
    2.5 - 3ARS-7107-
    2.5 - 3.5ARS-7008-
    2.5 - 3.5ARS-7108-
    2.5 - 4ARS-7009-
    2.5 - 5ARS-7010-
    2.5 - 5ARS-7109-
    2.5 - 5ARS-7110-
    2.5 - 6ARS-7011-
    2.5 - 6ARS-7012-
    2.5 - 8ARS-7013-
    2.5 - 8ARS-7014-
    2.5 - 10ARS-7015-
    2.5 - 10ARS-7151-
    4.6 - 4ARS-7155-
    4.6 - 5ARS-7050-
    4.6 - 5ARS-7016-
    4.6 - 6ARS-7017-
    4.6 - 6ARS-7019-
    4.6 - 6ARS-7115-
    4.6 - 8ARS-7018-
    4.6 - 8ARS-7020-
    4.6 - 8ARS-7116-
    4.6 - 10ARS-7022-
    4.6 - 10ARS-7023-
    4.6 - 12ARS-7024-
    10 - 05ARS-7025-
    10 - 05ARS-7026-
    10 - 06ARS-7120-
    10 - 08ARS-7121-
    10 - 10ARS-7027-
    10 - 10ARS-7123-
    10 - 12ARS-7028-
    16 - 05ARS-7124-
    16 - 06ARS-7029-
    16 - 06ARS-7031-
    16 - 08ARS-7030-
    16 - 10ARS-7032-
    16 - 10ARS-7128-
    16 - 12ARS-7033-
    25 - 06ARS-7156-
    25 - 08ARS-7034-
    25 - 08ARS-7036-
    25 - 10ARS-7035-
    25 - 10ARS-7132-
    25 - 12ARS-7037-
    35 - 6ARS-7133-
    35 - 8ARS-7038-
    35 - 10ARS-7135-
    35 - 12ARS-7040-
    50 - 8ARS-7136-
    50 - 10ARS-7137-
    50 - 12ARS-7042-
    50 - 16ARS-7139-
    70 - 10ARS-7140-
    70 - 12ARS-7141-
    70 - 16ARS-7142-
    95 - 10ARS-7144-
    95 - 12ARS-7044-
    95 - 16ARS-7145-
    120 - 12ARS-7146-
    120 - 16ARS-7147-
    120 - 20ARS-7148-
    150 - 12ARS-7149-
    150 - 16ARS-7045-
    150 - 20ARS-7046-

    RING TERMINALS INSULATED
    Sqmm Part Code Std Pack
    0.75 - 4ARSI-7501-
    01 - 04ARSI-7502-
    1.5 - 3ARSI-7054-
    1.5 - 3.5ARSI-7055-
    1.5 - 3.5ARSI-7058-
    1.5 - 4ARSI-7056-
    1.5 - 4ARSI-7059-
    1.5 - 4ARSI-7061-
    1.5 - 4ARSI-7063-
    1.5 - 5ARSI-7062-
    1.5 - 5ARSI-7065-
    1.5 - 5ARSI-7066-
    1.5 - 6ARSI-7067-
    2.5 - 3ARSI-7068-
    2.5 - 3.5ARSI-7069-
    2.5 - 3.5ARSI-7070-
    2.5 - 4ARSI-7071-
    2.5 - 5ARSI-7072-
    2.5 - 5ARSI-7073-
    2.5 - 5ARSI-7075-
    2.5 - 6ARSI-7074-
    2.5 - 6ARSI-7076-
    2.5 - 8ARSI-7077-
    2.5 - 8ARSI-7079-
    2.5 - 10ARSI-7081-
    4.6 - 4ARSI-7083-
    4.6 - 5ARSI-7084-
    4.6 - 5ARSI-7086-
    4.6 - 6ARSI-7089-
    4.6 - 6ARSI-7092-
    4.6 - 6ARSI-7093-
    4.6 - 8ARSI-7090-
    4.6 - 8ARSI-7094-
    4.6 - 8ARSI-7096-
    4.6 - 10ARSI-7099-
    4.6 - 12ARSI-7100-

    RING TERMINALS DOUBLE GRIP (PRE-INSULATED)
    Sqmm Part Code Std Pack
    1.5 - 3APSD-7437-
    1.5 - 3.5APSD-7438-
    1.5 - 4APSD-7439-
    1.5 - 3.5APSD-7441-
    1.5 - 4APSD-7442-
    1.5 - 4APSD-7444-
    1.5 - 5APSD-7445-
    1.5 - 4APSD-7446-
    1.5 - 5APSD-7448-
    1.5 - 6APSD-7449-
    1.5 - 6APSD-7450-
    2.5 - 3APSD-7451-
    2.5 - 3.5APSD-7452-
    2.5 - 3.5APSD-7453-
    2.5 - 4APSD-7454-
    2.5 - 5APSD-7455-
    2.5 - 5APSD-7456-
    2.5 - 6APSD-7457-
    2.5 - 5APSD-7458-
    2.5 - 6APSD-7459-
    2.5 - 8APSD-7460-
    2.5 - 8APSD-7462-
    2.5 - 10APSD-7464-
    4.6 - 4APSD-7466-
    4.6 - 5APSD-7467-
    4.6 - 5APSD-7469-
    4.6 - 6APSD-7472-
    4.6 - 8APSD-7473-
    4.6 - 6APSD-7475-
    4.6 - 6APSD-7476-
    4.6 - 8APSD-7477-
    4.6 - 8APSD-7479-
    4.6 - 8APSD-7482-
    4.6 - 12APSD-7483-

    FORK TERMINALS NON-INSULATED
    Sqmm Part Code Std Pack
    01 - 03ARS-7249SPL-
    1.5 - 3.5ARS-7249-
    2.5 - 3.5ARS-7251-

    FORK TERMINALS INSULATED
    Sqmm Part Code Std Pack
    01 - 03ARSI-7926SPL-
    1.5 - 3.5ARSI-7926-
    2.5 - 3.5ARSI-7928-

    FORK TERMINALS DOUBLE GRIP (PRE INSULATED)
    Sqmm Part Code Std Pack
    1.5 - 3.5APSD-7935-
    2.5 - 3.5APSD-7937-
    2.5 - 5APSD-7938-

    SNAP ON TERMINALS
    Sqmm Part Code Std Pack
    1.5ASNP-8351-
    1.5ASND-8352-
    2.5ASNP-8347-
    2.5ASND-8348-
    4ASND-8476-

    PIN TERMINAL NON-INSULATED
    Sqmm Part Code Std Pack
    0.75ACP-59-
    1ACP-44-
    1.5ACP-9-
    1.5ACP-35-
    2.5ACP-1-
    2.5ACP-2-
    25ACP-86-
    35ACP-87-
    4ACP-3-
    6ACP-5-
    10ACP-7-
    16ACP-8-
    50ACP-88-
    70ACP-89-
    95ACP-90-

    PIN TERMINAL (INSULATED)
    Sqmm Part Code Std Pack
    0.75ACPI-60-
    1ACPI-45-
    1.5ACPI-17-
    1.5ACPI-40-
    2.5ACPI-18-
    2.5ACPI-19-
    4ACPI-20-
    4ACPI-21-
    6ACPI-22-
    6ACPI-23-
    10ACPI-24-
    16ACPI-25-

    PIN TERMINAL DOUBLE GRIP (PRE-INSULATED)
    Sqmm Part Code Std Pack
    1.5ACPD-26-
    2.5ACPD-27-
    2.5ACPD-28-
    4ACPD-29-
