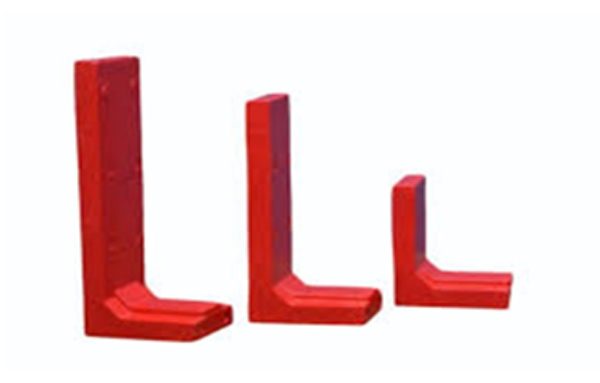

L Type Busbar Support
L type Busbar Support offers versatile solution for holding of different Busbar width & Thickness. It acts as a cantilever support & can use as spacer in between two Busbar. It also Offers flexibility in fixing of Busbar at desired location.
Our Busbar Supports are moulded from a flame retardant and track resistance glass reinforced Thermoset Polyester Compound recognized to use for current carrying devices under UL Material Recognition No. E249670.
- Glow Wire Test - 960 °C
- Self-Extinguishing, UL 94 V0 Rated
- Non-Hygroscopic Material
- Halogen Free
- Operating Temperature range from (-) 40°C to 130°C
Technical Details
| L Type Busbar Supports | |||
|---|---|---|---|
| Part Code | Height H (mm) | Thickness (T) mm | Std Pack |
| ALC60 | 60 | 10 | 50 |
| ALC85 | 85 | 10 | 50 |
| ALC100 | 100 | 10 | 50 |
| ALC125 | 125 | 10 | 50 |
| ALC150 | 150 | 12 | 25 |
