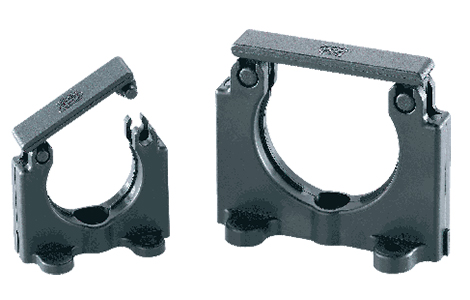

Mounting Clip
Mounting Clips
Mounting Clips are used for supporting conduits. These clips are made of High Quality Impact Resistant Polyamide. The mounting clips are stackable and are fixed with the help of screws on to the panel or equipment surface.
Technical Details
| Flat Mounting Clips | ||
|---|---|---|
| Cat. No. Black | Suitable for Conduit Size | Standard Pack (Pieces) |
| ACMC-10F | 10 | 100 |
| ACMC-13F | 13 | 100 |
| ACMC-16F | 16 | 100 |
| ACMC-18F | 18 | 100 |
| ACMC-29F | 29 | 50 |
| ACMC-34F | 34 | 50 |
| ACMC-42F | 42 | 30 |
| ACMC-54F | 54 | 25 |
| Round Mounting Clips | ||
|---|---|---|
| Cat. No. Black | Suitable for Conduit Size | Standard Pack (Pieces) |
| ACMC-10R | 10 | 100 |
| ACMC-13R | 13 | 100 |
| ACMC-16R | 16 | 100 |
| ACMC-18R | 18 | 100 |
| ACMC-29R | 29 | 50 |
| ACMC-34R | 34 | 50 |
| ACMC-42R | 42 | 30 |
| ACMC-54R | 54 | 25 |
| P Type Mounting Clips | ||||
|---|---|---|---|---|
| Cat. No. | Nominal ID (mm) | B Width (mm) | d Screw Size | Standard Pack (Pieces) |
| APMC-06 | 6 | 12 | M5 | 50 |
| APMC-08 | 8 | 12 | M5 | 50 |
| APMC-10 | 10 | 12 | M5 | 50 |
| APMC-12 | 12 | 12 | M5 | 50 |
| APMC-15 | 15 | 15 | M6 | 50 |
| APMC-22 | 22 | 15 | M6 | 50 |
| APMC-30 | 30 | 15 | M6 | 50 |
| APMC-35 | 35 | 15 | M6 | 50 |
| APMC-40 | 40 | 20 | M8 | 50 |
