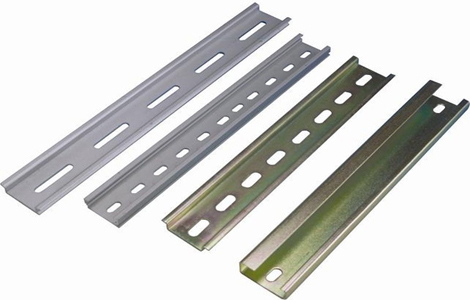

Din Rail
Ariflex Wiring Solutions India Pvt. Ltd. DIN RAILS are manufactured according to DIN standards hence accepted throughout the world, allowing the control cabinet designer to mount a wide variety of control panel components, devices, terminal blocks, etc. on the same rail.
35mm wide DIN rails are available in7.5mm and 15mm deep configuration for light duty application to heavy duty applications.
Ariflex Wiring Solutions India Pvt. Ltd. DIN mounting Rails comply with DIN EN 60715, DIN 50022, DIN 50035 Standards.
DIN Mounting rails are made of Cold rolled unalloyed low carbon steel, skin passed after annealing & as per DIN EN 10130 & Past Electro plated acc. to DIN 50961 with homogenous zinc laver & thick film of trivalent chromate passivation (RoHS).
Post Electroplating protect the DIN mounting rail against Corrosion including all cut edges.
Technical Details
| DIN Rail | |||
|---|---|---|---|
| Type | Size (H × W) mm | Part Code | Meter Per Box |
| DIN35 Rail 1 Meter Long | 35 × 7.5 | AD357-01 | 25 |
| DIN35 Rail Slotted 1 Meter Long | 35 × 7.5 | ADS357-01 | 25 |
| DIN35 Rail 2 Meter Long | 35 × 7.5 | AD357-02 | 50 |
| DIN35 Rail Slotted 2 Meter Long | 35 × 7.5 | ADS357-02 | 50 |
| DIN35 Rail 1 Meter Long | 35 × 15 | AD3515-01 | 25 |
| DIN35 Rail Slotted 1 Meter Long | 35 × 15 | ADS3515-01 | 25 |
| DIN35 Rail 2 Meter Long | 35 × 15 | AD3515-02 | 50 |
| DIN35 Rail Slotted 2 Meter Long | 35 × 15 | ADS3515-02 | 50 |
| Micro DIN15 Rail 1 Meter | 15 × 5.5 | ADM157-01 | 100 |
| G DIN32 Rail 1 Meter | 32 × 15 | ADG3215-01 | 10 |
