Galvanized Steel Flexible Conduit

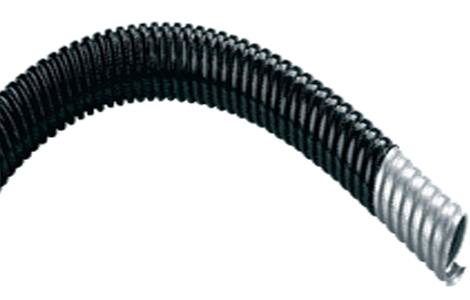

The Square locked, helical Corrugated Flame retardant PVC sheathed metal conduits are highly flexible. They do not contain silicon or cadmium. Their robust construction makes them resistant to high mechanical stresses. They also have high impact resistance. These conduits offer IP67 protection when combined with appropriate Controlwell conduit glands.

Technical Data

Product Specifications
Material	PVC Coated Galvanized Steel
Temperature Range	-25° C to +100° C Continuous
Protection Class	IP 65

PVC Sheathed Flexible Metal Conduits
Cat. No.	Inner Diameter (mm)	Outer Diameter (mm)	Bending Radius R (mm)	Standard Pack (meters)
AMCP-7	7	10	25	50
AMCP-9	10	14	35	50
AMCP-11	13	17	50	50
AMCP-13	15	19	55	50
AMCP-16	17	21	60	50
AMCP-21	21	27	65	25
AMCP-29	28	36	75	25
AMCP-36	37	45	90	25
AMCP-42	44	52	120	25
AMCP-48	48	56	135	25

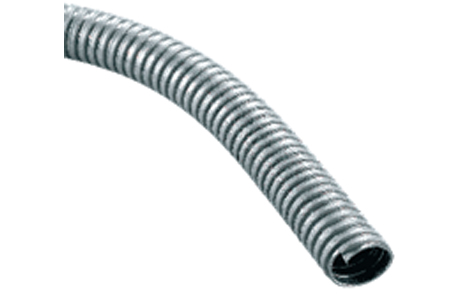

The Square locked, helical Corrugated Bare Metal Conduits are highly flexible and have an angular profile. Their robust construction makes them resistant to high mechanical stresses. They also have high impact resistance. They are used in the wiring of machine connections.

Technical Data

Product Specifications
Material	Galvanized Steel
Temperature Range	50° C to +250° C Continuous
Protection Class	IP 50

Flexible Metal Conduits
Cat. No.	Inner Diameter (mm)	Outer Diameter (mm)	Bending Radius R (mm)	Standard Pack (meters)
AMC-7	8	10	32	50
AMC-9	11	14	45	50
AMC-11	14	17	50	50
AMC-13	16	19	50	50
AMC-16	18	21	55	50
AMC-21	23	27	65	25
AMC-29	32	36	95	25
AMC-36	40	45	105	25
AMC-42	45	50	130	25
AMC-48	50	56	140	25
