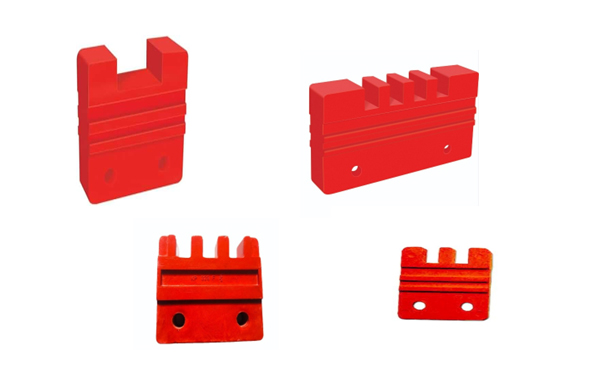

Finger Type Busbar Support
Finger type Busbar Support offers versatile solution for higher short circuit rating and can hold Single Run to Multiple Runs of 6.0mm, 10mm & 12mm Busbar.
Our Busbar Supports are moulded from a flame retardant and track resistance glass reinforced Thermoset Polyester compound recognized to use for current carrying devices under UL Material Recognition No. E249670.
- Glow Wire Test - 960 °C
- Self-Extinguishing, UL 94 V0 Rated
- Non-Hygroscopic Material
- Halogen Free
- Operating Temperature range from (-) 40°C to 130°C
Technical Details
| Finger Type Busbar Supports | ||
|---|---|---|
| Busbar Size | Part Code | Std Pack Qty |
| Single Way | ||
| 6mm x 1R | 601W | 50 |
| 10mm x 1R | 101W | 50 |
| 12mm x 1R | 121W | 50 |
| Two Way | ||
| 6mm x 2R | 602W | 50 |
| 10mm x 2R | 102W | 50 |
| 12mm x 2R | 122W | 50 |
| Three Way | ||
| 6mm x 3R | 603W | 50 |
| 10mm x 3R | 103W | 50 |
| 12mm x 3R | 123W | 50 |
| Four Way | ||
| 6mm x 4R | 604W | 50 |
| 10mm x 4R | 104W | 50 |
| 12mm x 4R | 124W | 50 |
