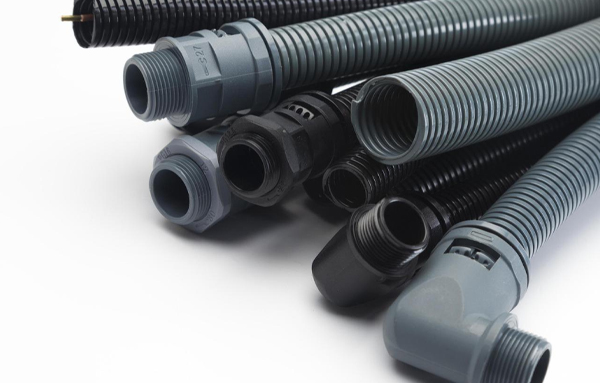

Polyamide Flexible Conduit
Standard Polyamide Flexible Conduits Slitted / Unslitted - CPS
Standard Polyamide Flexible Conduits Slitted / Unslitted are made of self-extinguishing Polyamide 6. They are flexible, halogen-free and have a small bending radius. They are suitable for various applications such as machinery, automobile, power plant etc. Unslitted conduits offer IP 68 protection in combination with Conduit Glands. UV resistant Conduits are also available on request. These Conduits are available in grey and black colour and comply with EN 60529 and IEC EN 61386 standards
Technical Details
| Property | Details |
|---|---|
| Material | Polyamide 6 |
| Temperature Range | -40°C to +105°C (Continuous), +130°C (Short Term) |
| Protection Class | IP 68 |
| Flexural Strength | 700 kg/cm² |
| Flexural Modulus | 18,000 kg/cm² |
| Tensile Strength | 520 kg/cm² |
| Impact Strength | 85 kg·cm/cm |
| Resistant | Alcohol, Benzol, Greases, Mineral Oil, Diesel Fuel, Sea Water, Petrol, etc. |
| Flexible Conduit Polyamide (PA6) | ||||
|---|---|---|---|---|
| Cat. No. Black | Inner Diameter (mm) | Outer Diameter (mm) | Bending Radius R (mm) | Standard Pack (meters) |
| AFCP-10B | 6.4 | 10 | 15 | 100 |
| AFCP-13B | 9.6 | 13 | 20 | 100 |
| AFCP-16B | 11.8 | 15.8 | 30 | 50 |
| AFCP-18B | 14.3 | 18.5 | 35 | 50 |
| AFCP-21B | 15.9 | 21.2 | 40 | 50 |
| AFCP-28B | 21.7 | 28.5 | 45 | 50 |
| AFCP-34B | 27.8 | 34.5 | 55 | 50 |
| AFCP-42B | 36 | 42.5 | 60 | 25 |
| AFCP-54B | 46.5 | 54.5 | 70 | 25 |
| Flexible Conduit Polyamide (PA6) Slitted | ||||
|---|---|---|---|---|
| Cat. No. Slitted | Inner Diameter (mm) | Outer Diameter (mm) | Bending Radius R (mm) | Standard Pack (meters) |
| AFCPS-10B | 6.4 | 10 | 15 | 100 |
| AFCPS-13B | 9.6 | 13 | 20 | 100 |
| AFCPS-16B | 11.8 | 15.8 | 30 | 50 |
| AFCPS-18B | 14.3 | 18.5 | 35 | 50 |
| AFCPS-21B | 15.9 | 21.2 | 40 | 50 |
| AFCPS-28B | 21.7 | 28.5 | 45 | 50 |
| AFCPS-34B | 27.8 | 34.5 | 55 | 50 |
| AFCPS-42B | 36 | 42.5 | 60 | 25 |
| AFCPS-54B | 46.5 | 54.5 | 70 | 25 |
