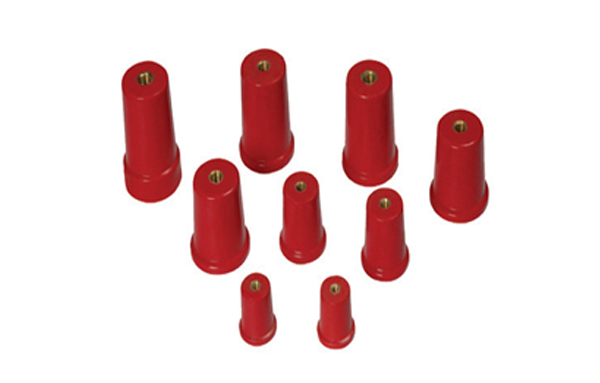

Conical Support
Our Insulators are moulded from a flame retardant and track resistance glass reinforced Thermoset Polyester compound recognized to use for current carrying devices under UL Material Recognition No. E249670 & products are itself certified under UL Product Recognition No. E314972.
- Glow Wire Test - 960 °C
- Self-Extinguishing, UL 94 V0 Rated
- Non-Hygroscopic Material
- Halogen Free
- Operating Temperature range from (-) 40°C to 130°C
Technical Details
| Conical Insulators | |||
|---|---|---|---|
| Part No | Height x Diameter | Insert | Std Pack |
| ACI01 | 30 x 30 | M6 | 100 |
| ACI02 | 30 x 30 | M8 | 100 |
| ACI03 | 40 x 40 | M8 | 50 |
| ACI05 | 50 x 50 | M10 | 25 |
| ACI06 | 60 x 50 | M12 | 25 |
| ACI07 | 70 x 50 | M12 | 20 |
| ACI08 | 80 x 55 | M12 | 20 |
