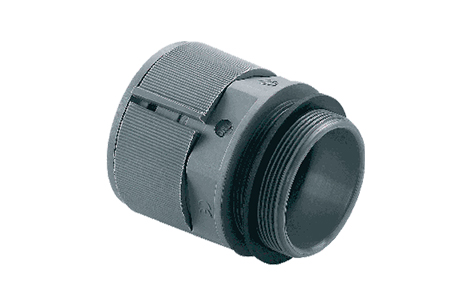

PVC Conduit Gland
Straight Conduit Gland - PG / Metric Thread
These connectors are used to clamp flexible corrugated conduits. They offer IP67 protection and are available in PG / Metric Thread for conduit size 10 to 28
Technical Data
| Property | Details |
|---|---|
| Material | Polyamide 6 |
| Colour | RAL 7001 (Grey), RAL 9005 (Black) |
| Temperature Range | -40°C to +105°C (Continuous), +150°C (Short Term) |
| Threads Available | Metric |
| Protection Class | IP 67 |
Technical Details
| Straight Conduit Gland - PG Thread | |||||
|---|---|---|---|---|---|
| Cat. No. Black | Size | Suitable for Conduit Size | Thread Diameter D (mm) | Thread Length L (mm) | Standard Pack (Pieces) |
| ACG-P07B | Pg 7 | 10 | 12.5 | 11 | 100 |
| ACG-P09B | Pg 9 | 13 | 15.2 | 13 | 100 |
| ACG-P11B | Pg 11 | 16 | 18.6 | 13 | 100 |
| ACG-P13B | Pg 13.5 | 18 | 20.4 | 13 | 100 |
| ACG-P16B | Pg 16 | 21 | 22.5 | 13 | 100 |
| ACG-P21B | Pg 21 | 28 | 28.3 | 15 | 50 |
| ACG-P29B | Pg 29 | 34 | 37 | 15 | 25 |
| ACG-P36B | Pg 36 | 42 | 47 | 19 | 30 |
| ACG-P48B | Pg 48 | 54 | 59.3 | 21 | 20 |
| Gland Lock Nut - PG Thread | ||
|---|---|---|
| Cat. No. Black | Size | Standard Pack (Pieces) |
| ALN-P07B | Pg 7 | 50 |
| ALN-P09B | Pg 9 | 50 |
| ALN-P11B | Pg 11 | 50 |
| ALN-P16B | Pg 16 | 50 |
| ALN-P21B | Pg 21 | 30 |
| ALN-P29B | Pg 29 | 30 |
| ALN-P36B | Pg 36 | 10 |
| ALN-P48B | Pg 48 | 10 |
| Straight Conduit Gland - Metric Thread | |||||
|---|---|---|---|---|---|
| Cat. No. Grey | Size | Suitable for Conduit Size | Thread Diameter D (mm) | Thread Length L (mm) | Standard Pack (Pieces) |
| ACG-M127B | M12 x 1.5 | 10 | 12 | 13 | 50 |
| ACG-M12B | M 12 x 1.5 | 13 | 12 | 13 | 50 |
| ACG-M1610B | M16 x 1.5 | 13 | 16 | 13 | 50 |
| ACG-M16B | M 16 x 1.5 | 16 | 16 | 13 | 50 |
| ACG-M202B | M 20 x 1.5 | 16 | 20 | 13 | 50 |
| ACG-M20B | M 20 x 1.5 | 21 | 20 | 13 | 50 |
| ACG-M2521B | M 25 x 1.5 | 21 | 25 | 15 | 30 |
| ACG-M25B | M 25 x 1.5 | 28 | 25 | 15 | 30 |
| ACG-M3229B | M 32 x 1.5 | 28 | 32 | 15 | 30 |
| ACG-M32B | M 32 x 1.5 | 34 | 32 | 15 | 30 |
| ACG-M4034B | M 40 x 1.5 | 34 | 40 | 19 | 10 |
| ACG-M40B | M 40 x 1.5 | 42 | 40 | 19 | 10 |
| ACG-M5042B | M 50 x 1.5 | 42 | 50 | 21 | 10 |
| ACG-M50B | M 50 x 1.5 | 54 | 50 | 21 | 10 |
| ACG-M6354B | M 63 x 1.5 | 54 | - | - | 10 |
| Gland Lock Nut - Metric Thread | ||
|---|---|---|
| Cat. No. Grey | Size | Standard Pack (Pieces) |
| ALN-M12B | M 12 x 1.5 | 50 |
| ALN-M16B | M 16 x 1.5 | 50 |
| ALN-M20B | M 20 x 1.5 | 50 |
| ALN-M25B | M 25 x 1.5 | 30 |
| ALN-M32B | M 32 x 1.5 | 30 |
| ALN-M40B | M 40 x 1.5 | 10 |
| ALN-M50B | M 50 x 1.5 | 10 |
| ALN-M63B | M 63 x 1.5 | 10 |
