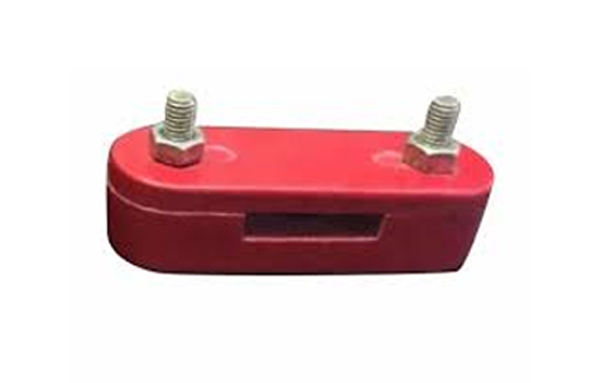

Earthing Busbar Support
Our Busbar Supports are moulded from a flame retardant and track resistance glass reinforced Thermoset Polyester compound recognized to use for current carrying devices under UL Material Recognition No. E249670.
- Glow Wire Test - 960 °C
- Self-Extinguishing, UL 94 V0 Rated
- Non-Hygroscopic Material
- Halogen Free
- Operating Temperature range from (-) 40°C to 130°C
Technical Details
| Earthing Busbar Support | |||
|---|---|---|---|
| Type | Part No | Size | Std Pack |
| Earthing Support | AES01 | 3 x 25 | 50 |
| Earthing Support | AES02 | 6 x 25 | 50 |
| Earthing Support | AES03 | 6 x 50 | 50 |
