Conduit End Cap
Conduit End Cap

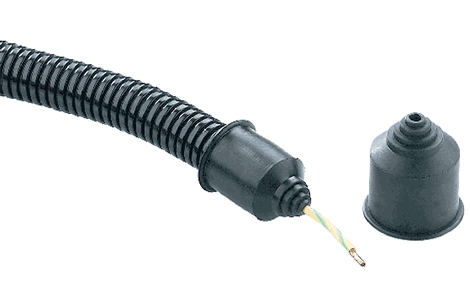

Tube End caps provide an IP66 covering at the end of corrugated tubes. The cap can be cut to accommodate pass through of different size wires.
Technical Details
| Conduit End Caps | |||||
|---|---|---|---|---|---|
| Cat. No. | Suitable for Conduit Size | Inner Diameter (mm) | Cable Range Ø min - Ø max (mm) | Total Length (mm) | Standard Pack (Pieces) |
| ACEC-10B | 10 | 10 | 02 - 07 | 24 | 100 |
| ACEC-13B | 13 | 12.5 | 03 - 10 | 33 | 100 |
| ACEC-16B | 16 | 15.8 | 4.2 - 12 | 33 | 100 |
| ACEC-18B | 18 | 21.2 | 06 - 16 | 34.5 | 100 |
| ACEC-29B | 29 | 28.5 | 06 - 22 | 41 | 50 |
| ACEC-34B | 34 | 34.5 | 06 - 28 | 43 | 50 |
| ACEC-42B | 42 | 42.5 | 06 - 36 | 58.5 | 30 |
| ACEC-54B | 54 | 54.5 | 10 - 01 | 58.5 | 20 |
